Film VFX & Animation

On-site Previsualization , the real-time green screen composite VFX makes green screen shooting more direct and smooth. The foreground of real-time shooting and CG roles, models, materials and special effects can be synthesized at the scene with high quality.
It can help directors and visual effects to see the final special effects composite results at the scene of green screen shooting, and it can be applied to advertising production, movies, TV plays, radio and television, etc.
VMSENS systems provide a real time on-set pre-vis of the VFX, and accelerating post production by saving the real-time camera tracking data for direct import into production tools.

RealTime
Camera Tracking
Realtime
Greenscreen VFX
Realtime
On-site Composing
Performance Capture
Mobirise

realtime camera
tracking

The new tracker provide precision, accuracy, and stability data streaming into realtime VFX system, the camera tracking module in low-cost and wide size of space, we have integetated tools that can be surveyed the space with in a short time and quick to install  by a new user

Mobirise

lens distortion  &
color corrected

Meet all the type of lens and camera CCD, we can calibration the shooting camera to fit the virtual camera parameters
complete color correction system to enable precise matching of virtual and live action elements

Mobirise

Lens Encoders

High-precision lens decoder system can be connected to any lens, and the nonlinear parameters of the zoom lens can be directly calibrated

Mobirise

realtime
performance capture

Supports real-time access such as motion capture and facial express capture, which perfectly meets the needs of integrated preview of  performance capture

Mobirise

chromakey & composing

Simplified, easy-to-use real time keyer that can produce final quality keys on blue or green screen backgrounds.
Setup and garbage mattes are more easier and intuitive on-site, it possible for user to come up to speed quickly.

Mobirise

hardware & software

we support the main AJA & BlackMagic video cards, and the data can direct streaming  to Unreal / Unity/ MotionBuilder

Case Gallery

Product

Mobirise

PZ  System - Realtime VFX Platform

PZ system is an on-site a real-time camera tracking, keying, rendering, and compositing platform system.It can be moved free, handheld, and can wide-area tracking, our system have simpler interface, integration with the Unreal/ Unity / MotionBuilder render engine, and can be afford by a small studio.
PZ system can be applied to the workflow of real-time VFX, preview for advertisement production, film, TV series, radio and television, etc

Mobirise

PZ Previs -  Previsualization System

Instead of keyframing, the PZ Previs virtual camera system lets you layout animated scenes the same way you would shoot live action ---the director can pan, tilt, dolly and crane his camera, all while watching on a jumbo monitor to see what it looks like in the virtual world.
This process offers the more hands-on director the ability to get in there and interact with the sequence in a way that is impossible with traditional previs tools.

Mobirise

Mox Motion Capture System

MoX Motion Capture is a flexible, camera-less full-body human motion capture solution. This portable system can be used indoors and outdoors.
Mox can be used in 3D character animation (for game, film, TV, advertising), Virtual Reality / Augments Reality, Training & Simulation, Sports science, Rehabilitation, Biomechanics research area.


Mobirise

Mox DataGlove Finger Capture

MoX Glove is base on small motion sensor, camera-less hand motion capture solution. This portable system can be used indoors and outdoors.
Mox can be used in 3D character animation (for game, film, TV, advertising), Virtual Reality / Augments Reality, Training & Simulation, Sports science, Rehabilitation, Biomechanics research area.


Mobirise

Mox Facial Capture

MoX Facial Capture is a markerless expression capture, we are using one single camera with a HMC (head mounted camera ).
Mox Facial capture system is easy for the realtime performance motion capture system.

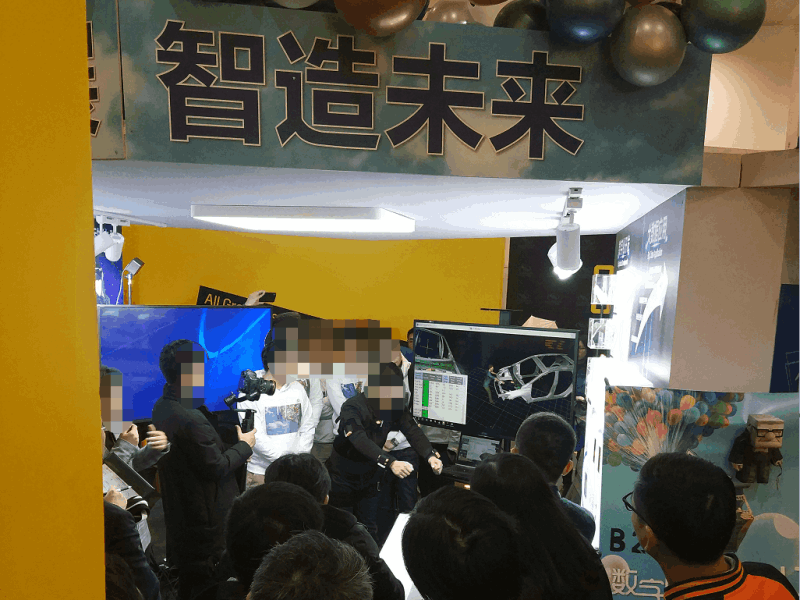

Industrial 4.0 & PLM

3D kinematics motion measurement system, captures human movement data, in real-time, Live stream highly accurate motion data to Product Lifecycle Management (PLM) software provided, improve time to market of products and processes in a simple and efficient way.

Industry 4.0

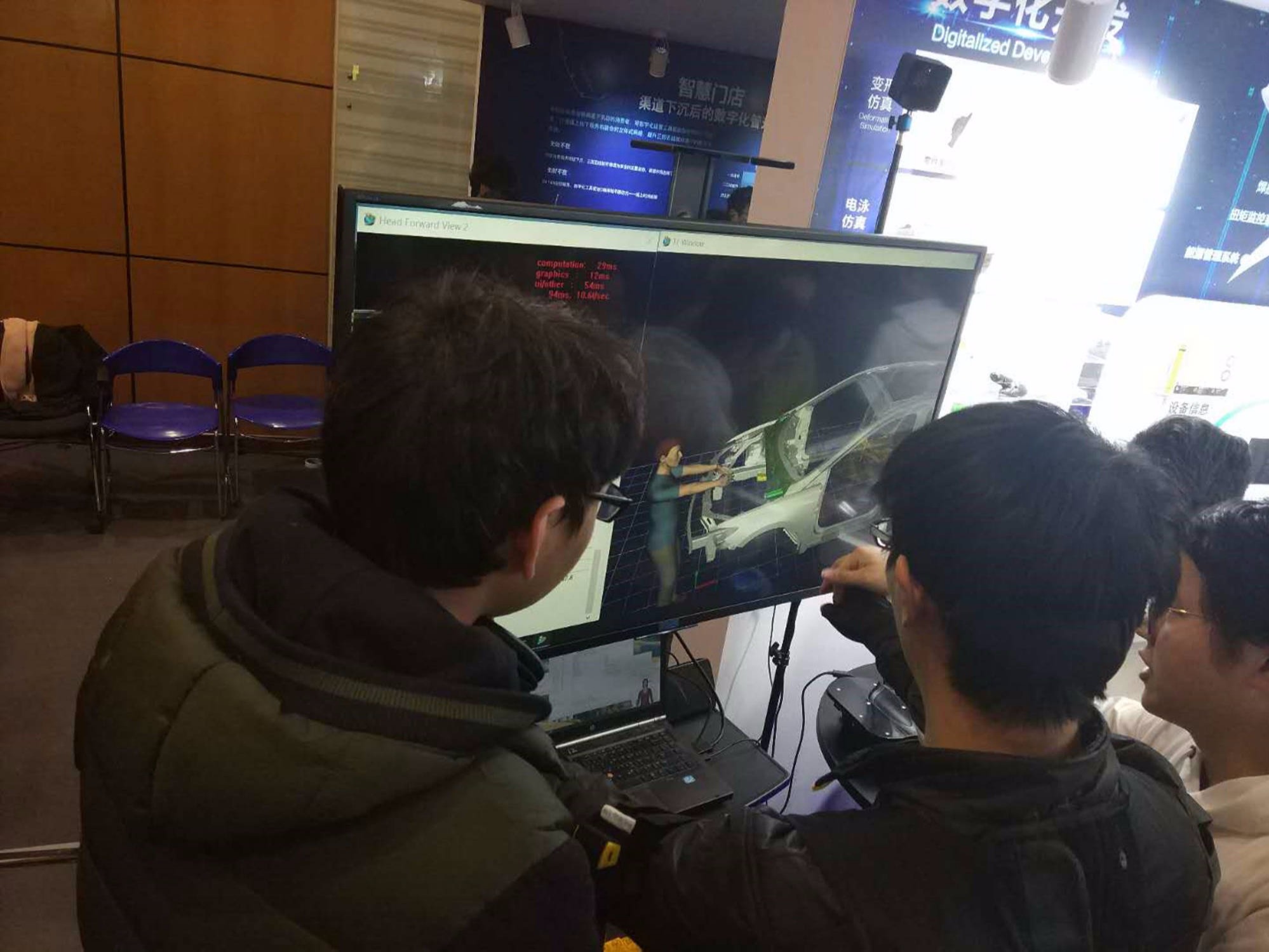

Ergonomic Analysis
Virtual Reality
Simulation

Case Gallery

Product

Mobirise

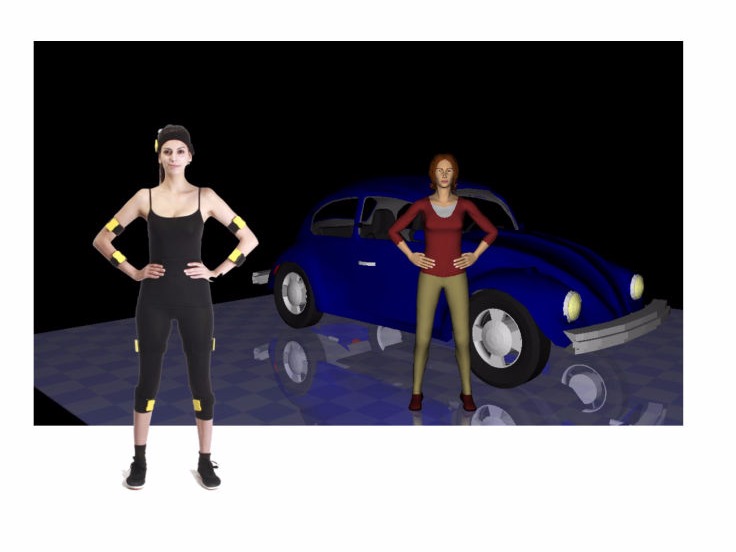

Mox  Bio  - Body Motion Analysis

MoX Suit is a flexible, camera-less full-body human motion capture solution. This portable system can be used indoors and outdoors.
Mox can be used in Virtual Reality / Augments Reality, Training & Simulation.

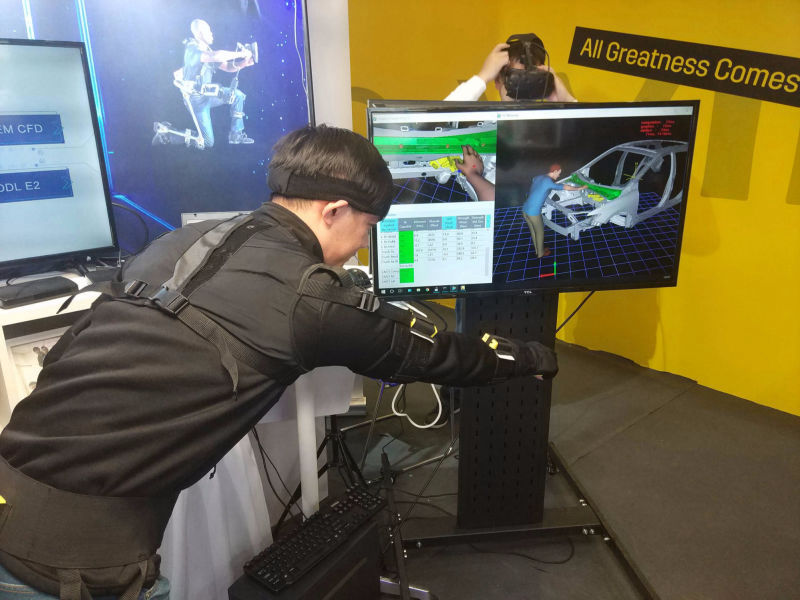

Mox can be integrated with PLM system ( Siemens Jack / Delmia ) , and also can be streaming data into VBS/ Unreal/ OSG.

Mobirise

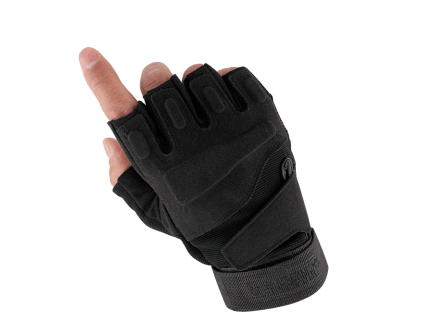

Mox Data Glove - finger tracking

MoX Glove is a flexible, camera-less hand motion capture solution. This portable system can be used indoors and outdoors.
Mox can be used in Virtual Reality / Augments Reality, Training & Simulation area.
Mox have 15 points sensor solution, can track very small motion of fingers, used in a accurcy applications.

Mobirise

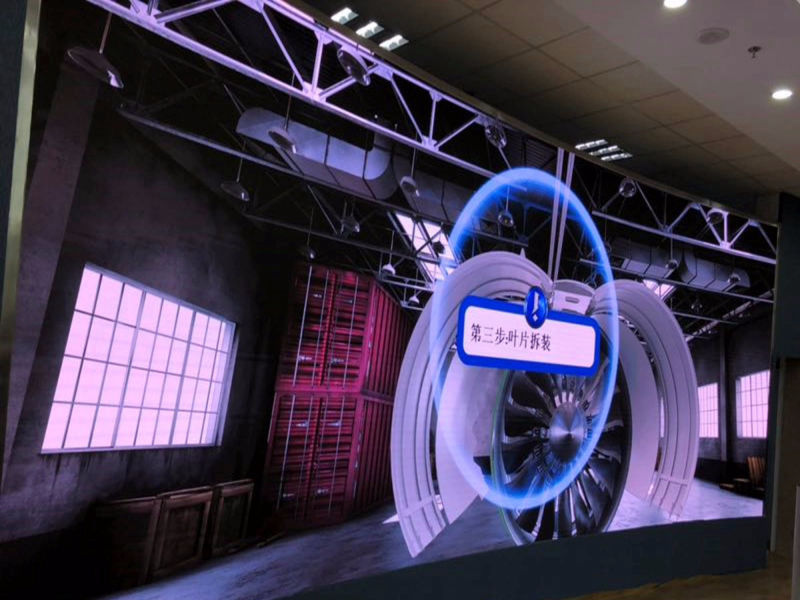

Tracker & Display

For the different applicaions, how to display the data is very important, we can provide nDisplay / Cave/ Head Mount Display / Stereo Display system.
And also, our tracker can be easy integrated to the display system.




Mobirise

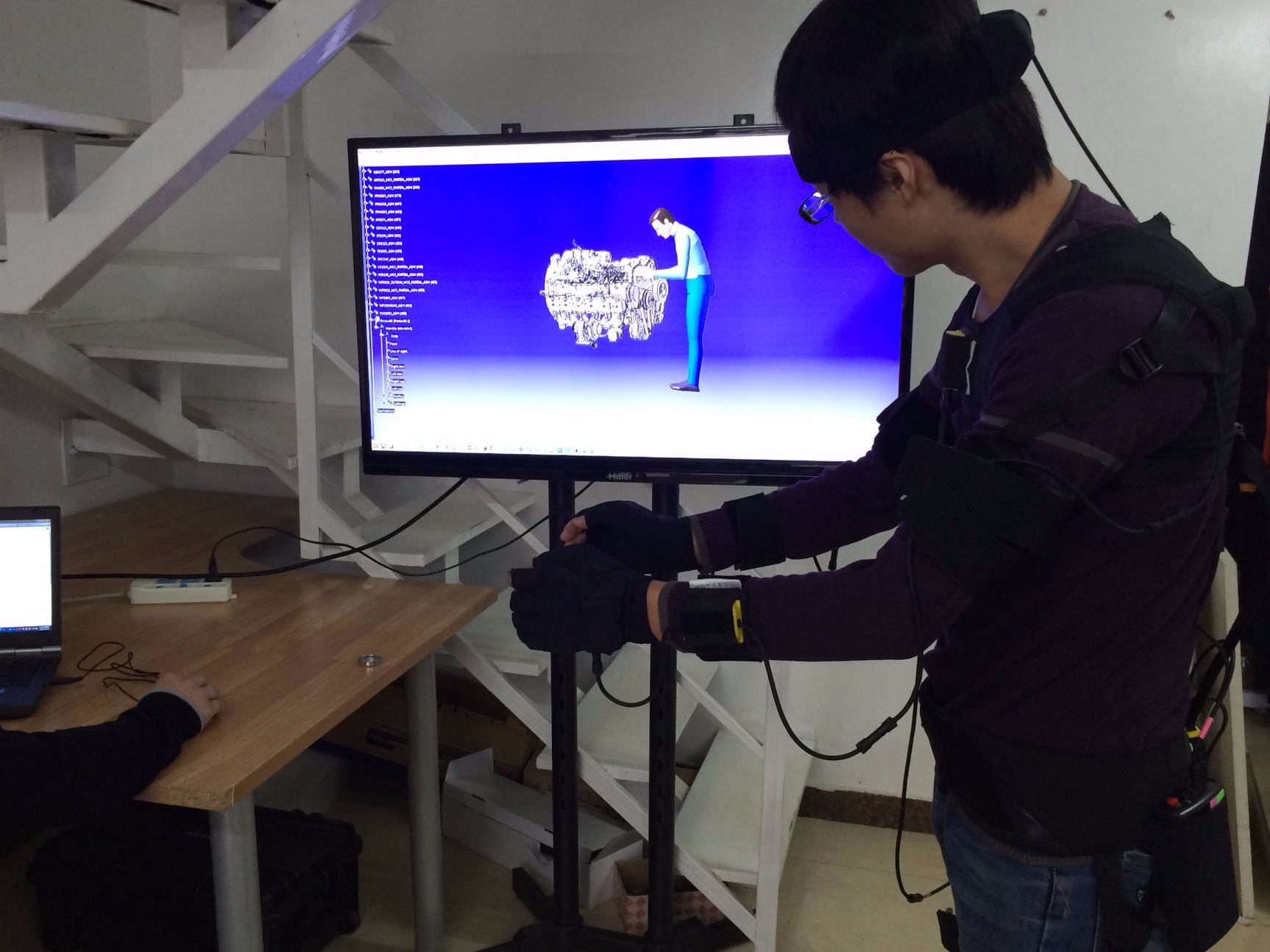

PLM Interface

PLM system can improve  time to market of products and processes in a simple and efficient way. Our PLM interface can live stream body and finger motion capture data into Siemens Jack / Process Simulate Human / Delmia system.



Mobirise

 Unreal/ OSG

We also provide interface with the third-party application engine for to meet the different needs of applications.
For more detail, contact with us directly.






Werable Sensor

对于运动与健康的诉求，VMSENS作为具有10年经验的运动传感器解决方案商，我们了解专业人员对于人体生物力学运动链的分析需求，我们提供精准的测量与易用的使用的传感器系统平台，我们专业的技术人员能够提供给开发者和应用商提供专业可信的解决方案，让您的应用快速面向市场

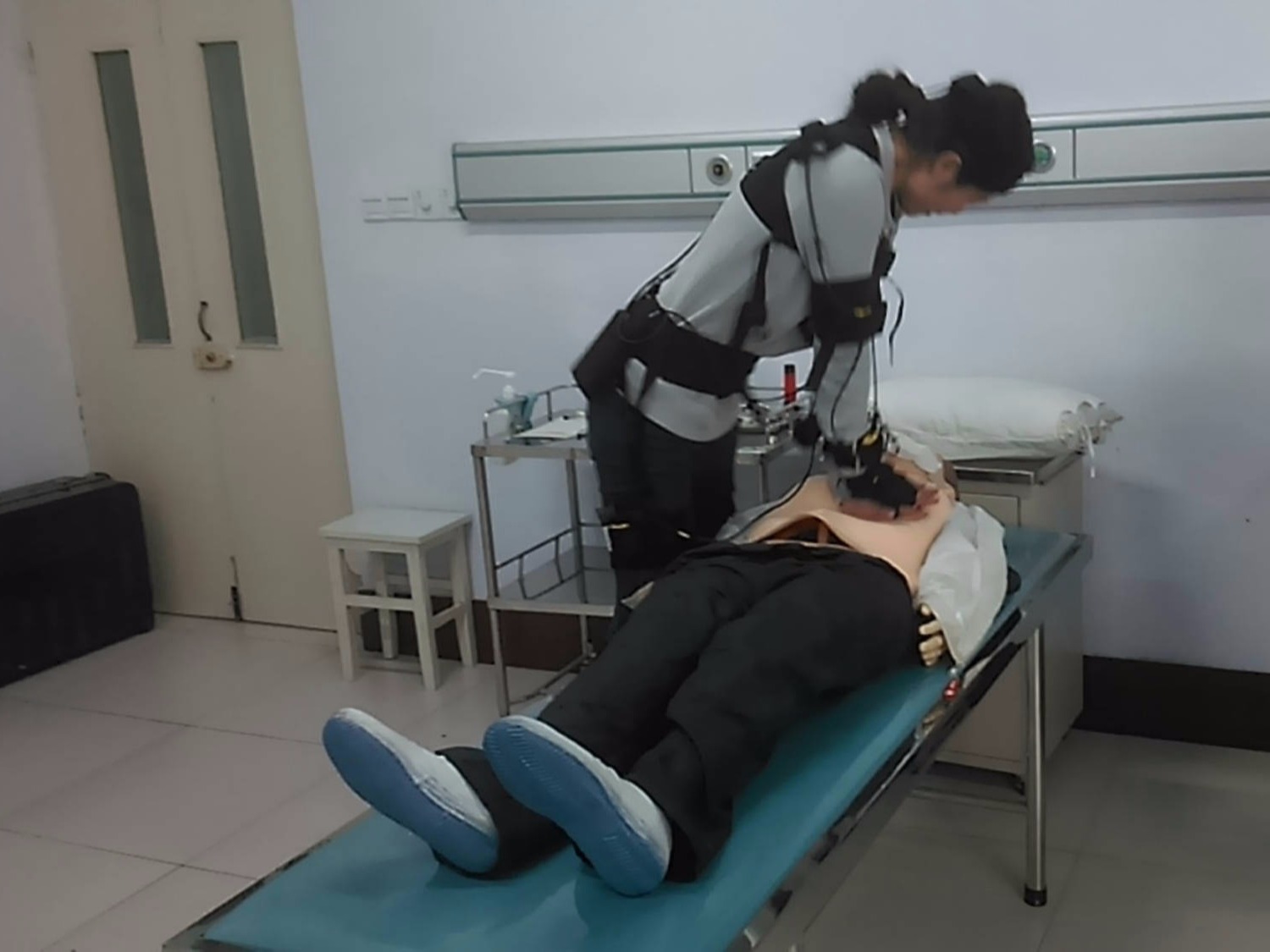

Rehablitation
Sport
Biomechanics
Health

Case Gallery

Product

Mobirise

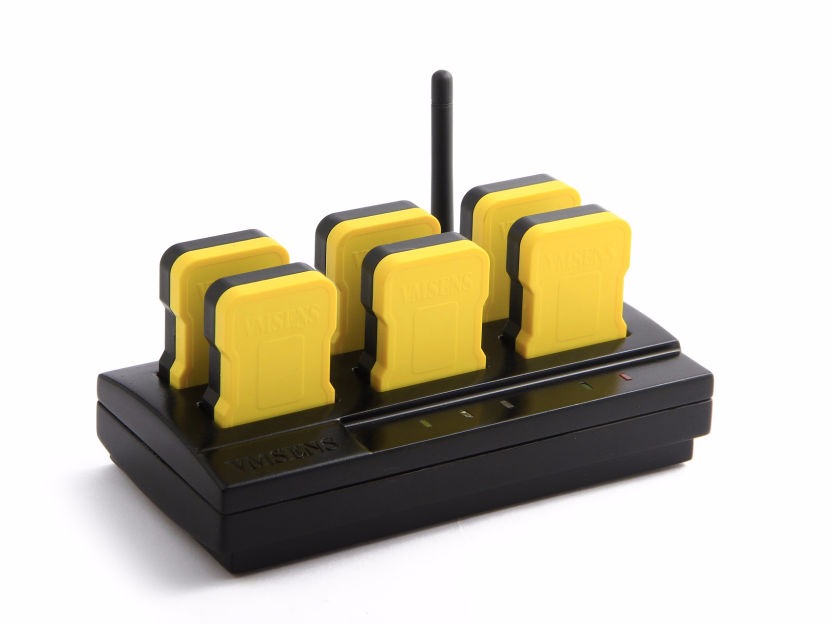

iVM-w-I  Professional human motion tracker

iVM-w-I is a completely wireless motion tracker without signal & power line restrictions, can be use anywhere, under any lighting condition: outside, office, no lab or simulated environment required.
One of the breakthroughs of the iVM™-w is the Mon-Bus™ wireless protocol; this wireless protocol can be used to real-time talk with multiple motion trackers wireless with low latency.
The iVM-w-I can be widely used for virtual reality, motion analysis and also other field where low-cost & high-performance 3D orientation measuring is needed.
-Completely wireless inertial motion trackers
-ISM 2.4 GHz radio frequency, worldwide license free use
-Real-time computed attitude/heading and inertial dynamic data
-360º orientation referenced by gravity and Earth Magnetic Field
-Integrated with other force /EMG platforms

Mobirise

iVM-w-II Universal human motion tracker

iVM-w-II universal human motion tracker is a motion tracker for human motion measurement in commercial applications. It is suitable for customer applications that require high precision, stability, durability and are very sensitive to cost. It is your better choice tracker in large-scale commercial applications, development system
iVM-w-II can provide different wireless protocol, like Bluetooth/ 2.4G Mon-Bus,
The iVM-w-I can be widely used for virtual reality, motion analysis and also other field where low-cost & high-performance 3D orientation measuring is needed.
-Completely wireless inertial motion trackers
-ISM 2.4 GHz radio frequency, worldwide license free use
-Real-time computed attitude/heading and inertial dynamic data
-360º orientation referenced by gravity and Earth Magnetic Field
-support with human kinematic data.

Mobirise

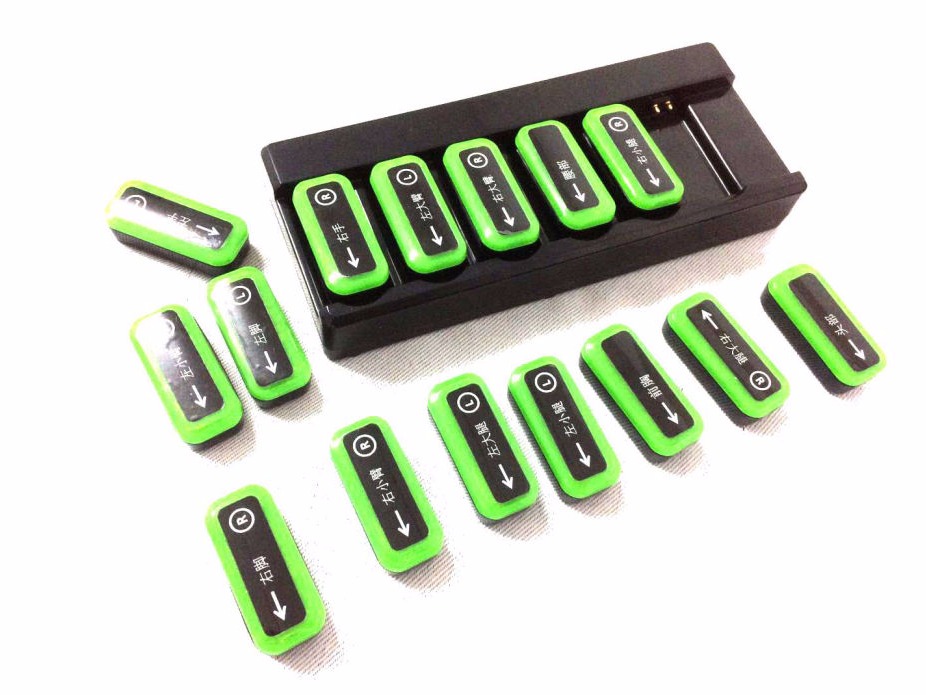

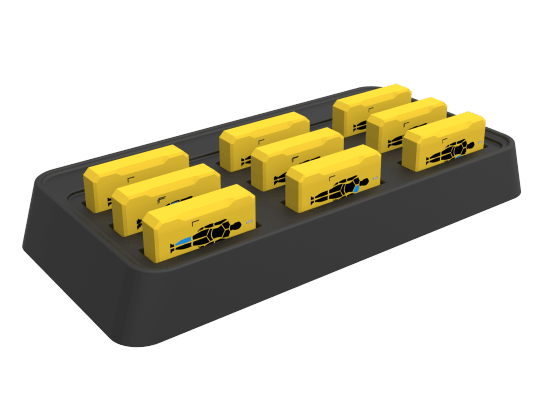

iVM-w-III micro human motion tracker

iVM-w-III is a cost-effective sensor system , it is suitable for large-scale use. It has the advantage of low cost.
Ultra small size package is suitable for motion capture and motion monitoring of human small joints, such as spine and fingers. At the same time, low-cost price is the best choice for large-scale use
-Completely wireless inertial motion trackers
-ISM 2.4 GHz radio frequency, worldwide license free use
-Real-time computed attitude/heading and inertial dynamic data
-360º orientation referenced by gravity and Earth Magnetic Field
-support with human kinematic data.






Mobirise

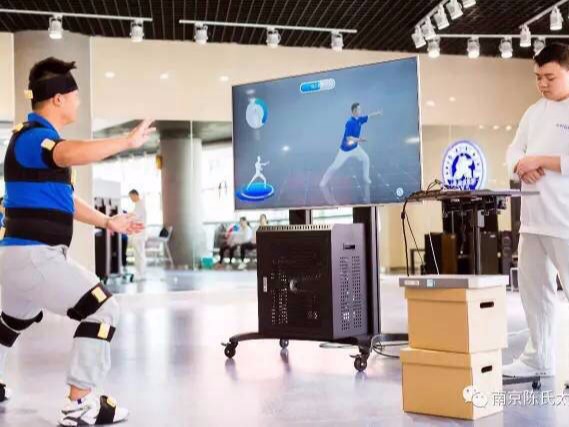

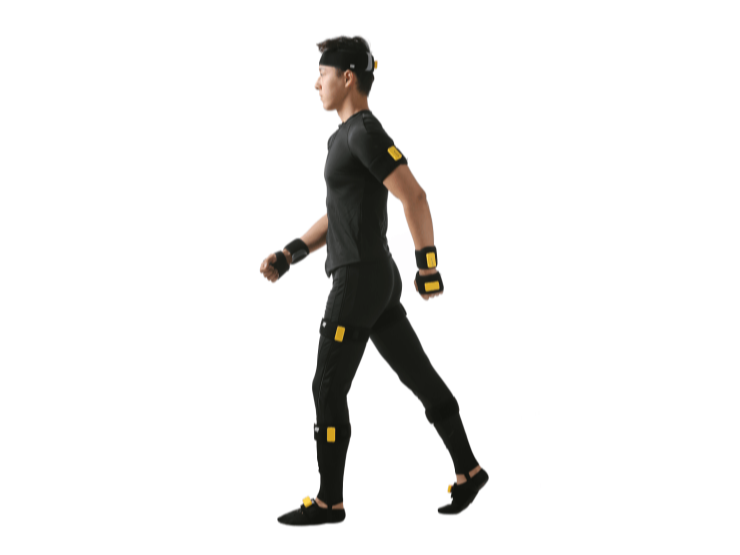

Mox Bio Analysis  Motion Capture

Mox Bio Analysis is a flexible, camera-less full-body human motion capture solution. This portable system can be used indoors and outdoors.
Mox Bio Analysis can be used in sports science, rehabilitation,biomechanics research area.
-21 inertial motion trackers
-Special design & comfortable motion capture suit
-Advantage strap-down sensor system
-Wireless data transfer up to 1000meter(Max)
-Portable case for easy transportation
-Export pop motion capture file formats .BVH .C3D and raw data.
-Advanced human body model provides output of 23 body segments
-Advance spine and shoulder parameter design, more detail in these segments
-Full body segment kinematics ( position, velocity, acceleration, orientation, angular velocity, angular acceleration)



Motion capture is ideal for a wide range of sports applications, both as a research tool and in training situations. Physical limitations and movement optimization are of great interest in the prevention of injuries to athletes.
In addition to biomechanical studies, motion capture may be used to study how external, psychological factors affect balance, movement ability and performance. The VMSENS motion tracking & analysis system is widely used in the sport science, human motion analysis field, the human motion tracking and analysis results can speed the human motion analysis of and promote the interdisciplinary researches.
Traditional systems for capturing human movement require expensive and fixed infrastructures that define and limit the subject to a specific tracked volume. The VMSENS wireless motion tracker offers a sourceless solution that allows the subject to move freely in any environment.

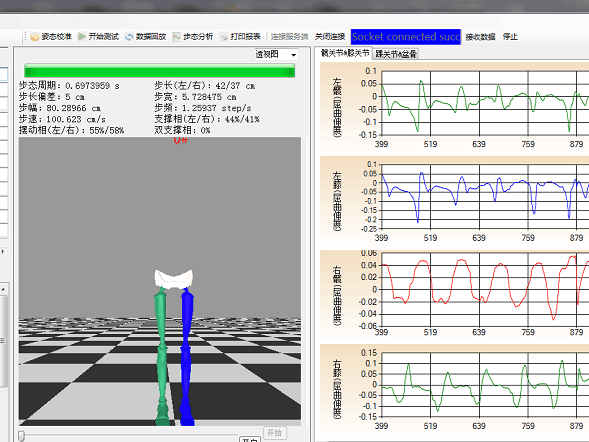

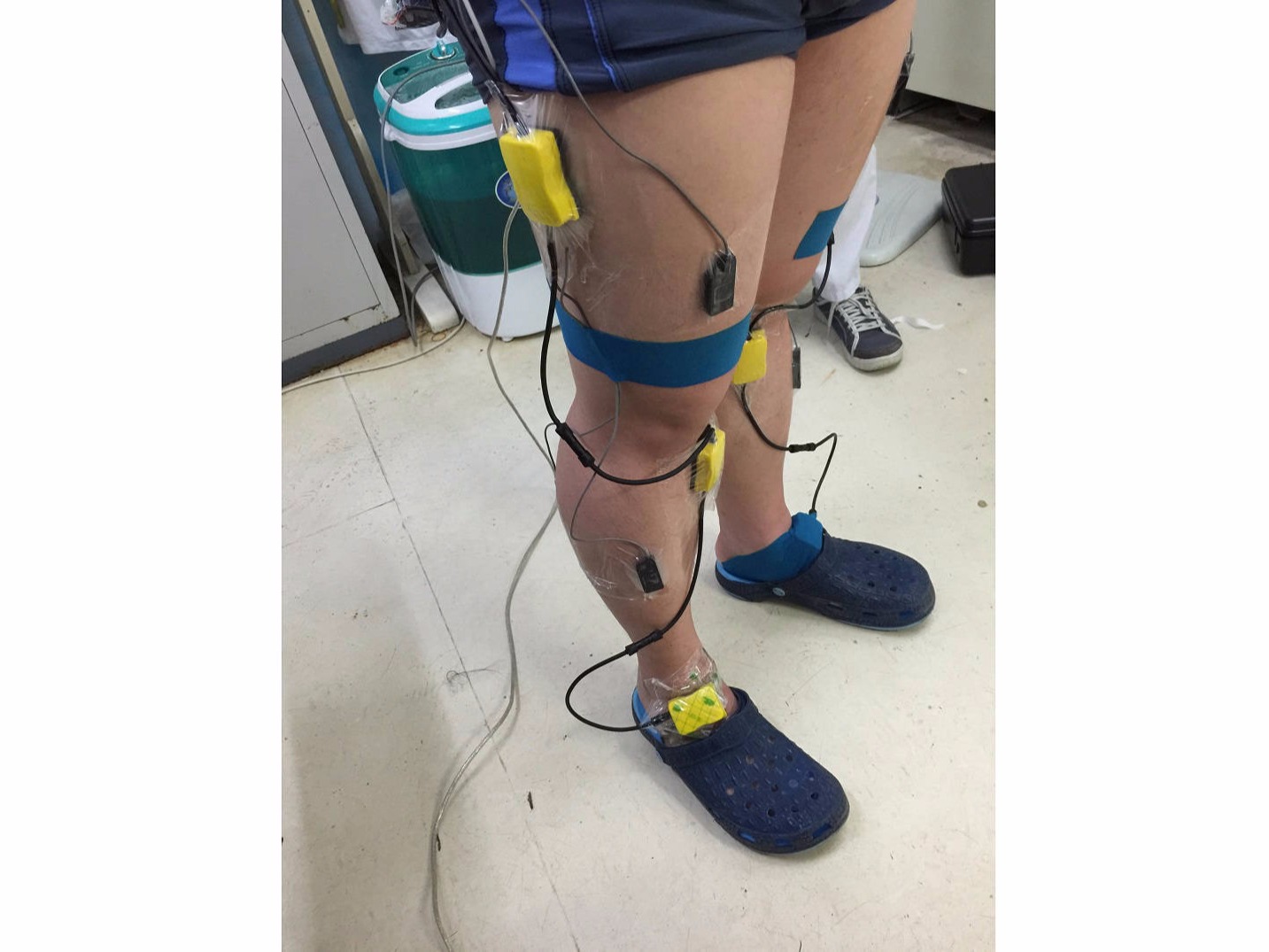

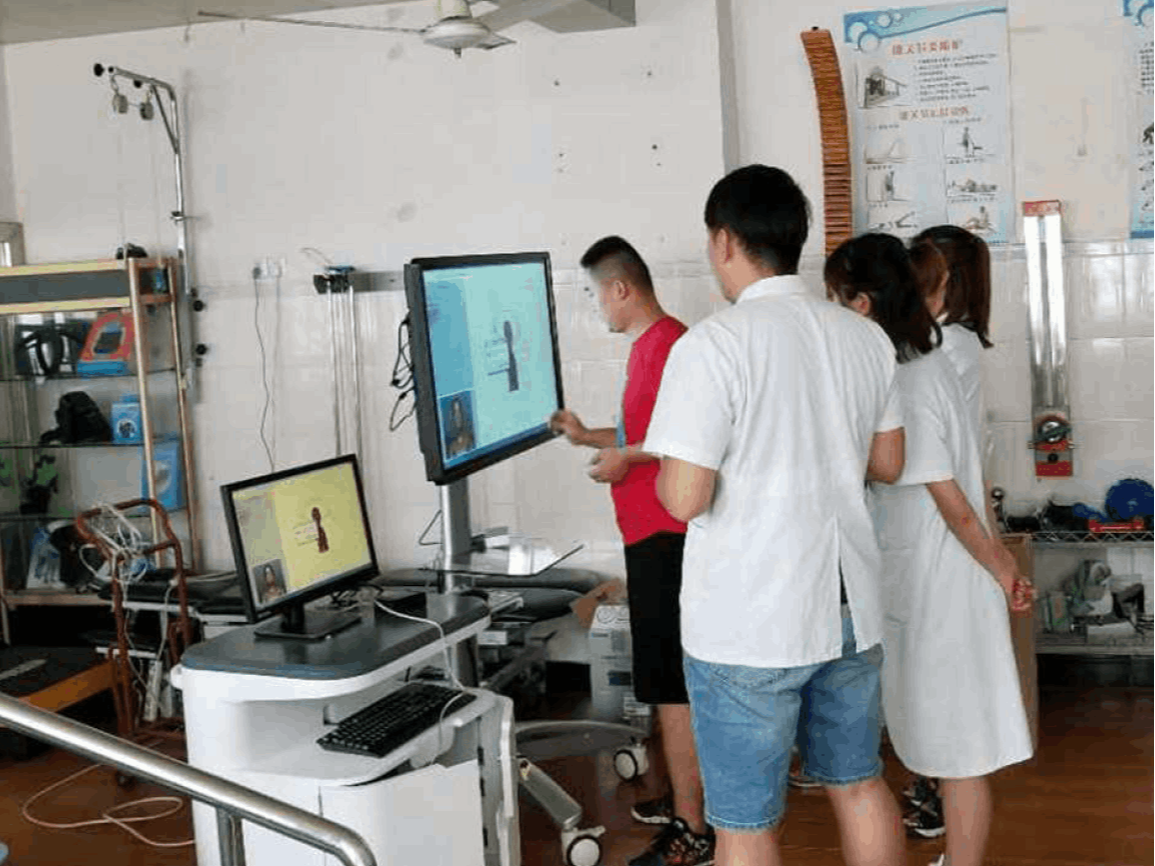

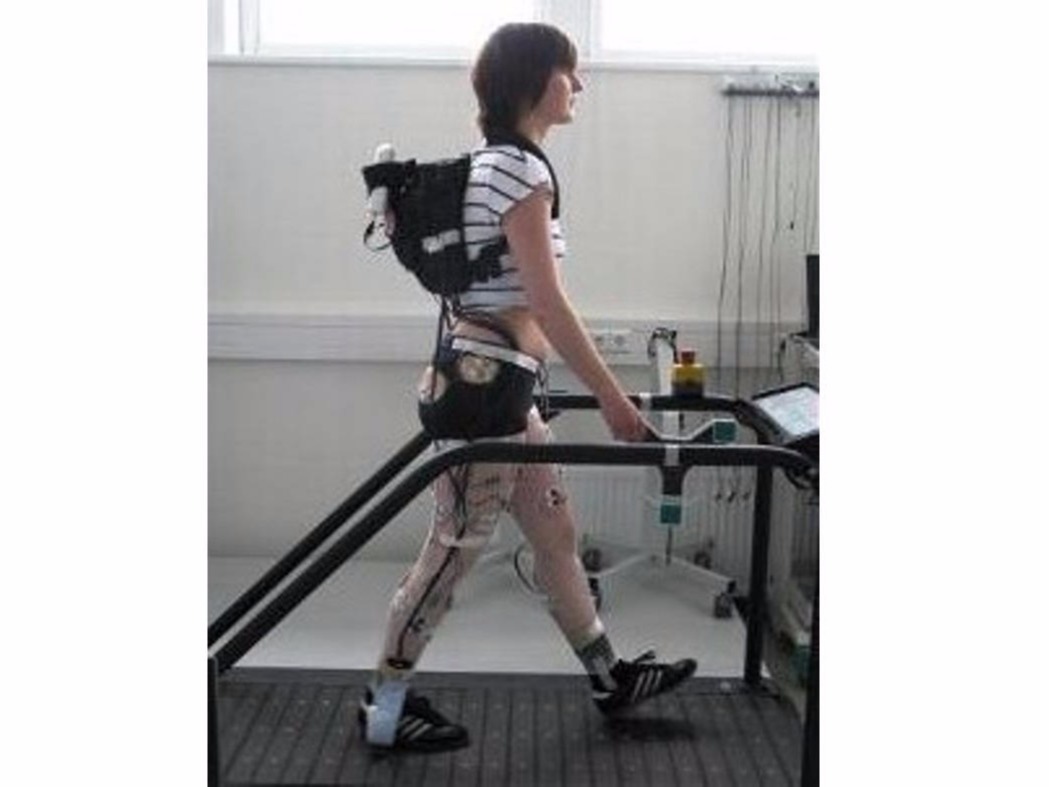

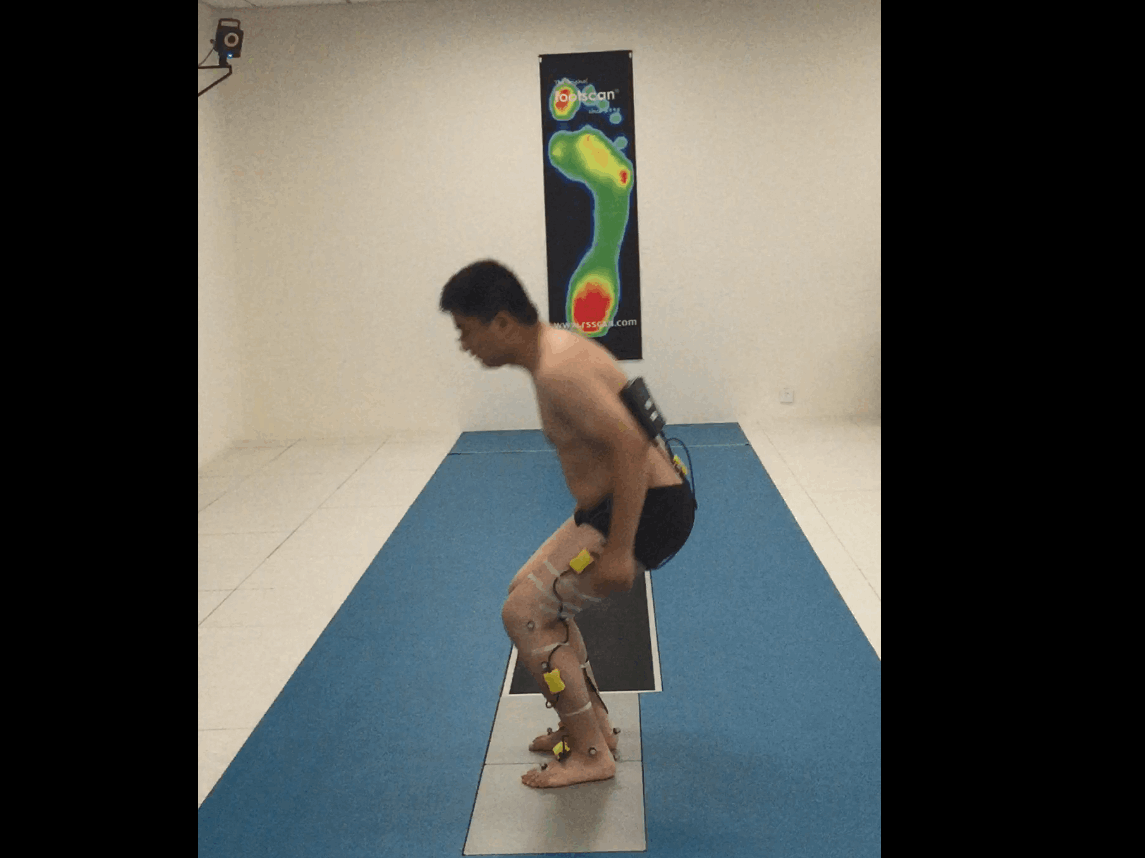

Biomechanical, Gait Analysis & Rehabilitation

Inertial Sensor
IMU/ VG/ AHRS
GPS-INS/Marine Sensor

10 years of technology innovation, we have been from a single inertial module supplier to a 3D motion tracking solution provider with independent core technology. Our products include a variety of small motion tracking and attitude measurement sensors  (IMU / VG / AHRS / GPS-INS / Marine Sensor),  hybrid inertial vision tracker and other analysis system

Position
Orientation
Navigation
Computer Vision

Case Gallery

Product

Mobirise

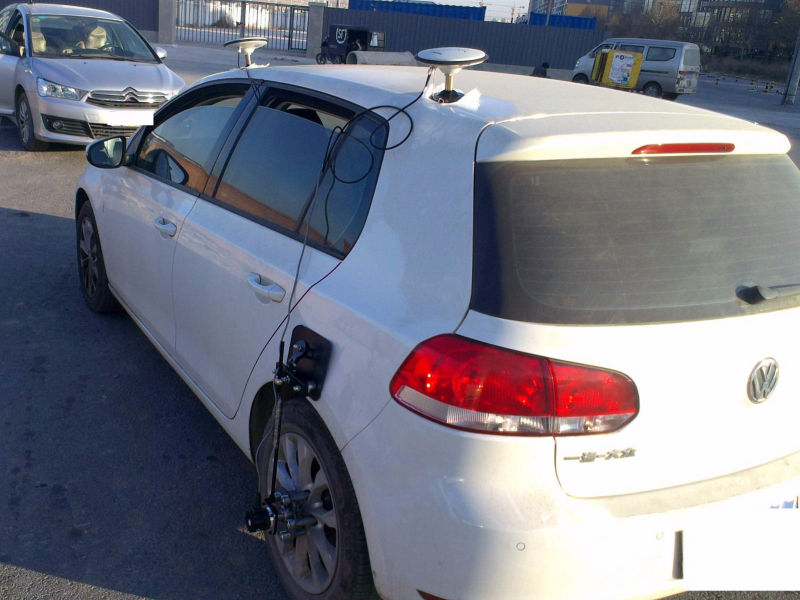

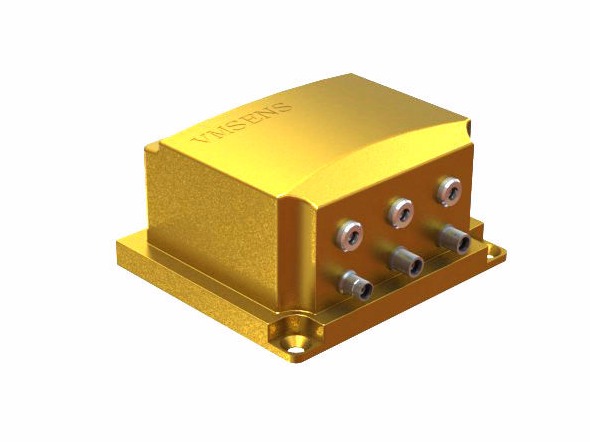

iVM-800：Inertial/ GNSS/ DMI ALL IN One Solution

iVM-800 is an inertial navigation systems based on the robust and cost-effective MEMS technology.
In land applications, GPS signal may be disrupted. The combination of VMSENS Inertial Navigation System with complementary technologies such as wheel speed sensor and RTK GNSS is the key to provide smooth vehicle positioning , even in urban canyons, forest, tunnel, etc.
To save both time and money, we have tested and selected the best equipment to build a cost-effective and all-in-one package – iVM-800 Solution.

Mobirise

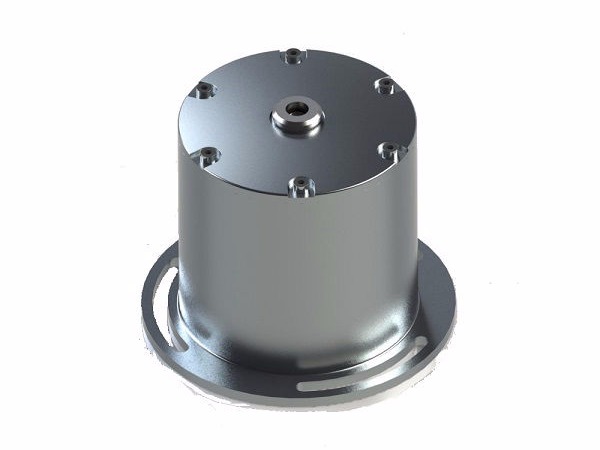

iVM-900 : Marine Vehicle POS

Base on miniature MEMS sensor, VMSENS has developed inertial Motion Sensors iVM-900 to meet the requirements of the marine sector.
This solution can provides high accuracy motion measurement data in dynamic environment in all areas from a wide range of offshore applications including crane and winch control, wave and ship motion measurement in all condition



Mobirise

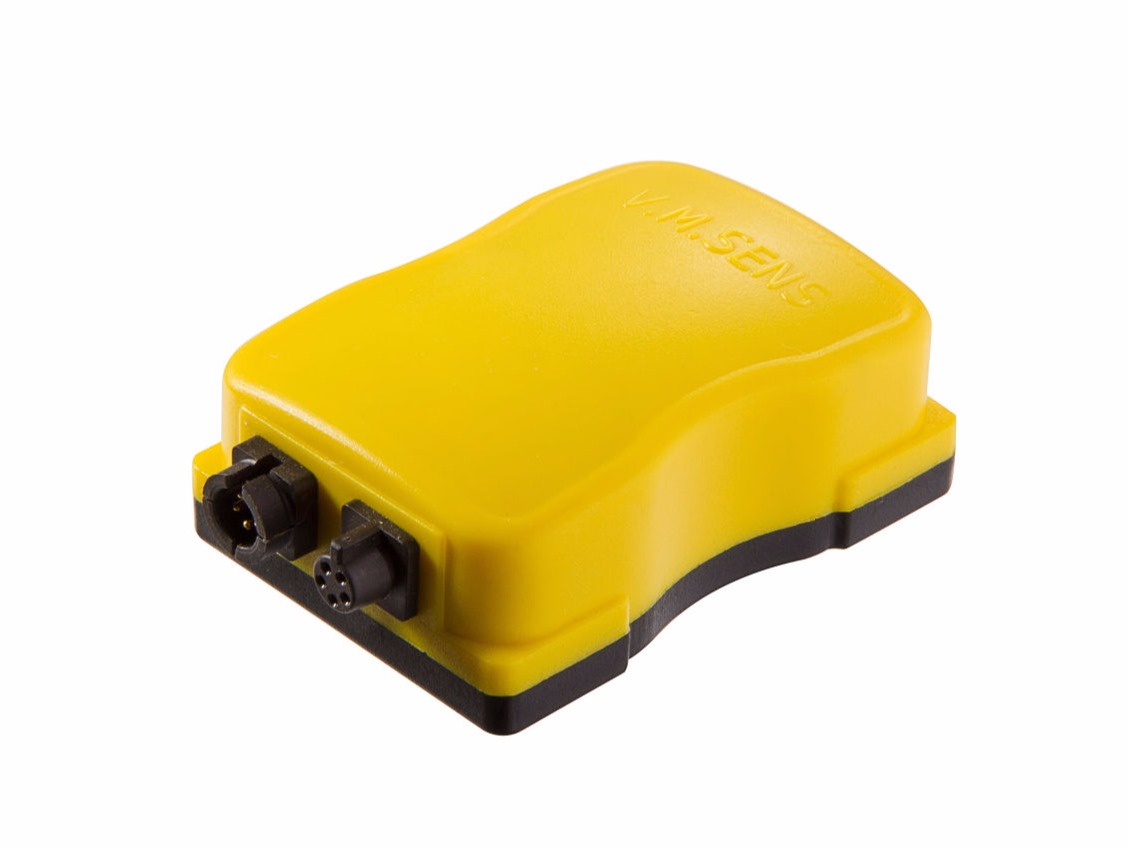

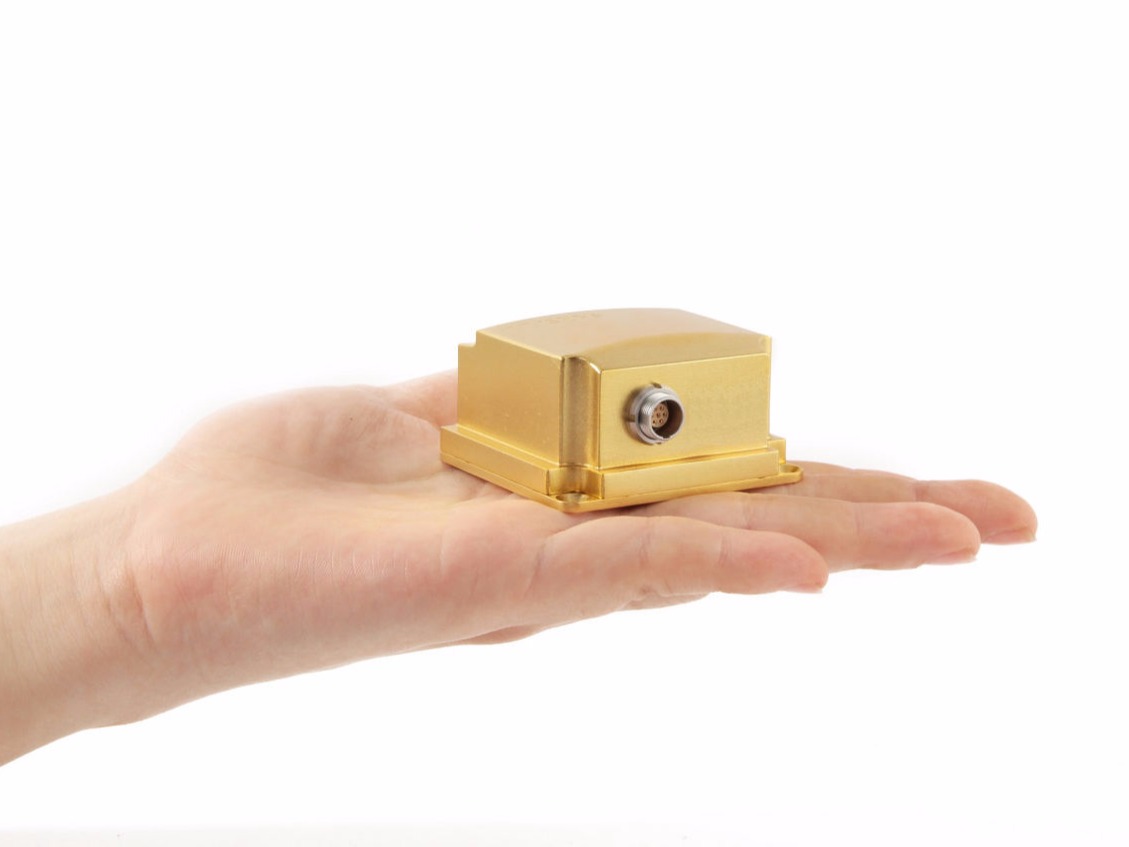

iVM-x series : High Performance IMU/AHRS/MRU/GPS-INS

The iVM-x is a high performance, miniature, gyro-enhanced motion tracking system (IMU/ VRU/ AHRS/ GPS-INS). Its internal low-power signal processor provides a quaternion-based iMTFusion™ algorithm to output drift-free 3D orientation as well as calibrated 3D acceleration, 3D rate of turn and 3D earth-magnetic field data.
The iVM™-x can be widely used for stabilization and control of cameras, antenna robots, vehicles and equipment and also other field where high-performance 3D orientation measuring is needed.


Mobirise

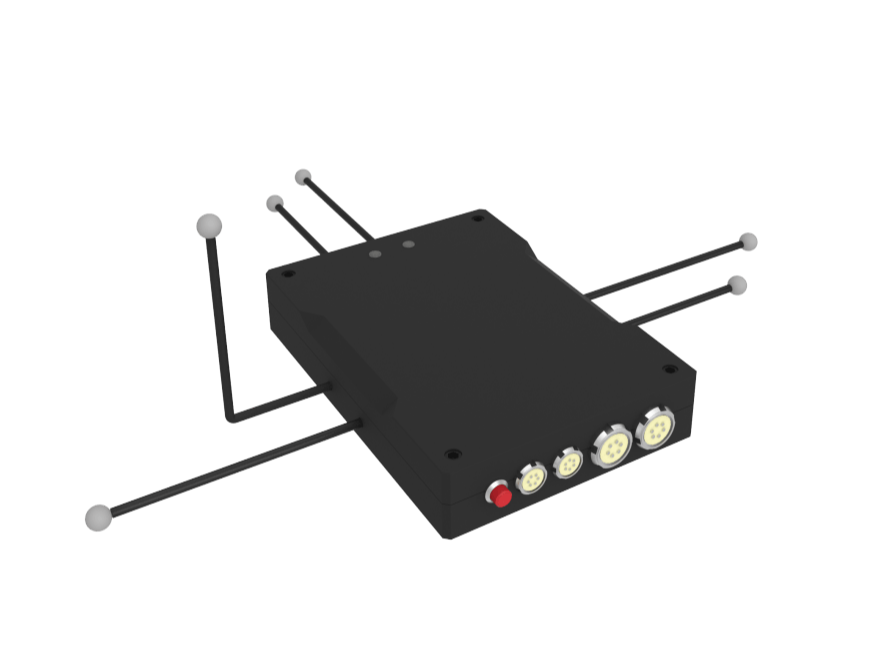

PZ series : optical motion tracking stabilizer

In order to meet the customer's very strict requirements for the stability of position and attitude measurement and data output, it is often necessary to achieve 0.00001 data stability. The common high-precision optical positioning system is also very difficult to meet the requirements.
With PZ stabilizer system we can provides high-precision attitude and position measurement solutions for laser positioner, Mix reality, real-timeVFX  and other fields
-Provide real-time solution and fusion of data, and effectively solve the problems such as tracking and blocking, equipment vibration, drift, etc
-Effectively reduce the number of optical capture cameras and investment cost
-Reduce the time required for later data cleansing
-Support two kinds of optical motion jitter problems: inside out / ouside in
-Docking compatible with optical capture systems such as vicon, optitrack
-Provide a complete software running environment, easier to use
-Support OEM customization

Mobirise

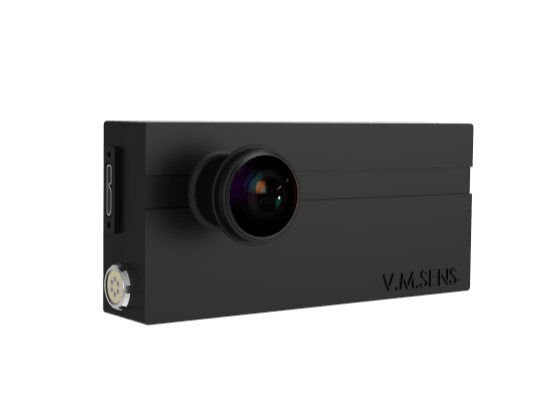

i-Vision  series  : hybrid viosn & inertial tracking system

iVsion series is an advance commercial inertial-optical tracking system. It provides a robust and portable tracking solution with continuous tracking output even during short optical occlusions. Easily installed in moving vehicles, aircraft, simulators,HMD、HUD、MR/ VR,  industrial and lab environments, the system is designed to be simple and flexible allowing for convenient integration into unique configurations.
- High performance, our advanced sensor fusion algorithms provides smooth, fast, and accurate tracking in real time.
- Low Cost, the hybrid inertial-optical technology of the allows for a simple set-up with only one module to achieve full 6-DOF tracking, minimal hardware and cost savings for development and deployment.
-Support OEM customization




Mobirise

VM-i : Low cost motion tracking

Continuing the success that VMSENS inertial technologies provides motion tracking solution, now, the VM-i is a ideal multi-purpose sensor for real-time applications in stabilization and control of cameras and antenna, robots, vehicles and other (un)manned equipment, simulation & training, virtual & augmented reality.
The VM-i integrates 3D orientation MEMS elements, utilizing VMSENS Sensor Fusion algorithms to process full 360° orientation tracking to provides real-time and drift-free 3D orientation data








Why Choose us

We have served more than 100 industry customers , provided them with professional motion tracking technology solutions system
More than 10000 + sensors have been running on a variety of industrial devices

1


10 years focus on sensor technology

10 years of focus on inertial sensor fusion technology, innovate and cooperate , and gradually develop into a inertial positioning technology solution provider with independent core technology

2

More experience in service and products

Our technology is used in intelligent industry, film and television animation, and medical industry. We are familiar with the operation rules and related technologies of different industries, which can better meet your professional needs

3

Professional hardware &  software technical

We have the hardware & software system scheme with independent intellectual property rights that has been tested in practice, which can provide customers with hardware products quickly. Our accumulated experience in software algorithm and application technology can greatly save the development investment cost for you
